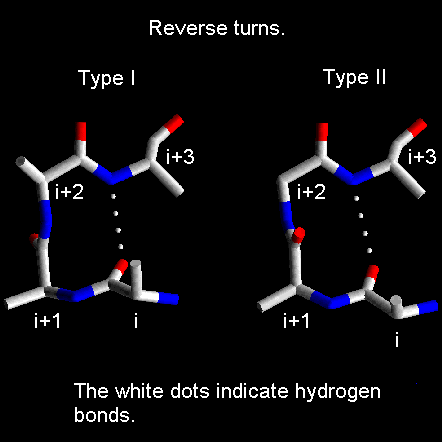

Reverse turns are divided into classes based on the phi and psi angles of the residues at positions i+1 and i+2. Types I and II shown in the figure below are the most common reverse turns, the essential difference between them being the orientation of the peptide bond between residues at (i+1) and (i+2).

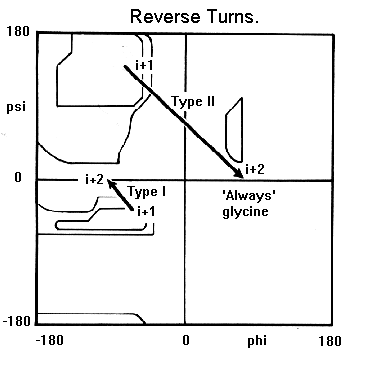

The torsion angles for the residues (i+1) and (i+2) in the two types of turn lie in distinct regions of the Ramachandran plot.
Note that the (i+2) residue of the type II turn lies in a region of the Ramachandran plot which can only be occupied by glycine. From the diagram of this turn it can be seen that were the (i+2) residue to have a side chain, there would be steric hindrance with the carbonyl oxygen of the preceding residue. Hence, the (i+2) residue of type II reverse turns is nearly always glycine.
j.cooper 2/1/95
Last updated 4th Nov'96
